DMC201010R - Panasonic

Description: DMC201010R, Dual Dual Bipolar Transistor, NPN 100 mA 50 V HFE:210 150 MHz Power, 5-Pin Mini5 G3 B

Download DMC201010R Model

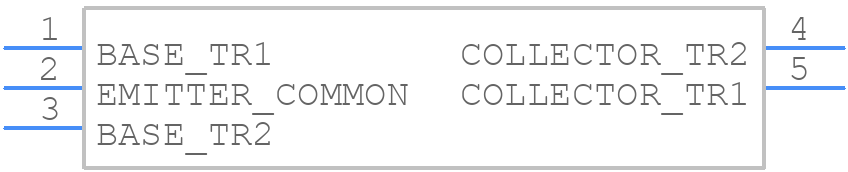

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC201010R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMC201010R - Panasonic  - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMC201010R Details

  • Manufacturer Part Number:

    DMC201010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JEDEC-95 Code:

    MO-178AA

  • JESD-30 Code:

    R-PDSO-G5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz
