HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.5 A
Collector-Emitter Voltage-Max:
20 V
Configuration:
COMMON EMITTER, 2 ELEMENTS
DC Current Gain-Min (hFE):
200
JEDEC-95 Code:
MO-178AA
JESD-30 Code:
R-PDSO-G5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMC201A00R Frequently Asked Questions (FAQs)
Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the high-frequency signals, and a decoupling capacitor (e.g., 100nF) between the VCC and GND pins to reduce noise and ensure stable operation.
The DMC201A00R has a thermal resistance of 30°C/W. To manage thermal issues, ensure good airflow around the device, use a heat sink if necessary, and avoid high ambient temperatures. Also, follow the recommended power dissipation guidelines to prevent overheating.
Panasonic recommends a soldering temperature of 260°C (max) and a soldering time of 3 seconds (max) to prevent damage to the device. Use a soldering iron with a temperature control and follow the recommended soldering profile.
The DMC201A00R is designed to withstand vibrations up to 10G (10-2000Hz). However, it's essential to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Consult Panasonic's reliability handbook for more information.
To troubleshoot issues, start by checking the power supply voltage, signal integrity, and PCB layout. Use an oscilloscope to verify the signal waveforms and ensure they meet the recommended specifications. Consult Panasonic's application notes and technical support resources for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC201A00R Overview

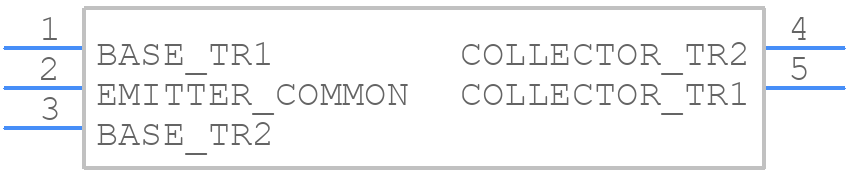

Use the download button to access the DMC201A00R schematic symbol, PCB footprint, and 3D model.
