DMC204010R - Panasonic

Description: DMC204010R, Dual Dual Bipolar Transistor, NPN 100 mA 50 V HFE:210 150 MHz Power, 6-Pin Mini6 G4 B

Download DMC204010R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

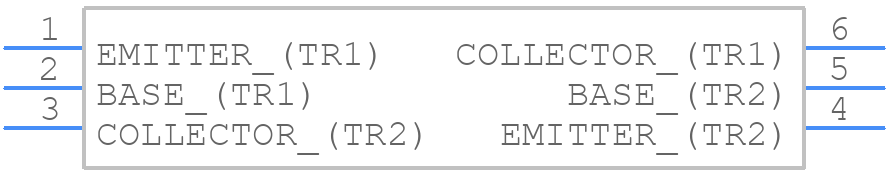

DMC204010R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMC204010R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom
3D Models
DMC204010R - Panasonic - 3D model - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom

DMC204010R Details

  • Manufacturer Part Number:

    DMC204010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

DMC204010R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC204010R is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm. The land pattern should be designed to accommodate the component's dimensions and thermal considerations.
  • The DMC204010R has a high power density, so thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce thermal resistance. The recommended operating temperature range is -40°C to 150°C.
  • The maximum allowable voltage for the DMC204010R is 100V. Exceeding this voltage may damage the component or affect its reliability.
  • Yes, the DMC204010R is suitable for high-frequency applications up to 1 GHz. However, ensure that the component is properly decoupled and that the PCB layout is optimized for high-frequency operation.
  • To ensure reliability in a humid environment, follow proper storage and handling procedures, and consider applying a conformal coating to protect the component from moisture. The DMC204010R has a moisture sensitivity level (MSL) of 3, so it's essential to follow proper handling and storage procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMC204010R Overview

Use the download button to access the DMC204010R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMC20, or try a keyword search, such as Small Signal Bipolar Transistors
