DMC204020R - Panasonic

Description: DMC204020R, Dual Dual Bipolar Transistor, NPN 500 mA 50 V HFE:40 160 MHz Power, 6-Pin Mini6 G4 B

Download DMC204020R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

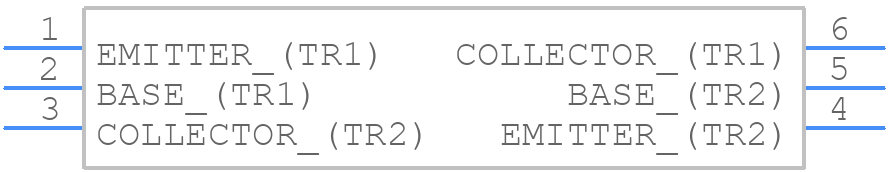

Symbol
DMC204020R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMC204020R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - Mini6-G4-B
click to zoom
3D Models
DMC204020R - Panasonic - 3D model - SOT23 (6-Pin) - Mini6-G4-B
click to zoom

DMC204020R Details

  • Manufacturer Part Number:

    DMC204020R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SC-74, SOT-457, 6 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.21.00.75

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.5 A

  • Collector-Base Capacitance-Max:

    15 pF

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    40

  • JESD-30 Code:

    R-PDSO-G6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    0.3 W

  • Power Dissipation-Max (Abs):

    0.3 W

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    160 MHz

  • VCEsat-Max:

    0.6 V

DMC204020R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC204020R is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm.
  • To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a thermal interface material (TIM) to improve heat transfer.
  • The maximum operating temperature range for the DMC204020R is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
  • To ensure reliability in high-vibration environments, use a secure mounting method, such as screw mounting or adhesive mounting, and consider using a vibration-dampening material to reduce stress on the device.
  • The recommended soldering profile for the DMC204020R is a peak temperature of 260°C, with a dwell time of 10-30 seconds, and a cooling rate of 4°C/s or less.
