DMC204B30R - Panasonic

Description: DMC204B30R, Dual Bipolar Transistor, NPN 0.5 (Transistor 2) A, 100 (Transistor 1) mA

Download DMC204B30R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

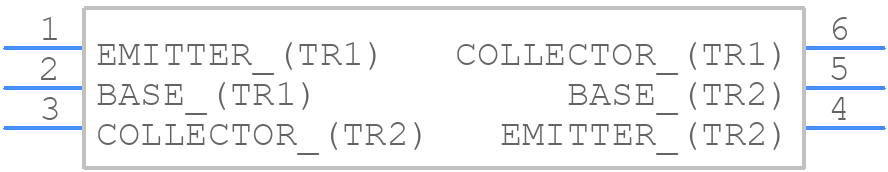

DMC204B30R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMC204B30R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom
3D Models
DMC204B30R - Panasonic - 3D model - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom

DMC204B30R Details

  • Manufacturer Part Number:

    DMC204B30R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

DMC204B30R Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or vibration during soldering.
  • Panasonic recommends derating the voltage by 10% to 20% to ensure reliable operation and prevent premature failure.
  • While the DMC204B30R is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (>80% RH) without proper protection, such as conformal coating or hermetic sealing.
  • Start by checking the power supply voltage, then verify the input and output signals using an oscilloscope. If issues persist, consult the datasheet and application notes, or contact Panasonic's technical support team.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMC204B30R Overview

Use the download button to access the DMC204B30R schematic symbol, PCB footprint, and 3D model.
