DMC204C00R - Panasonic

Description: DMC204C00R, Dual Bipolar Transistor, NPN 20 mA 100 V HFE:400 140 MHz LF Amplifier, 6-Pin Mini6 G4 B

Download DMC204C00R Model

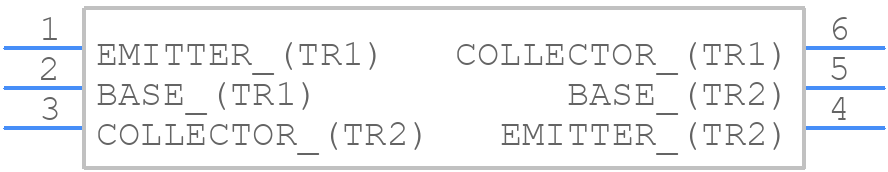

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC204C00R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom
3D Models
DMC204C00R - Panasonic  - 3D model - SOT23 (6-Pin) - mini6-g4-b-ren1
click to zoom

DMC204C00R Details

  • Manufacturer Part Number:

    DMC204C00R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.02 A

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    400

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    140 MHz

DMC204C00R Frequently Asked Questions (FAQs)

  • Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the DMC204C00R. The component should be placed near the edge of the board to minimize thermal resistance. A thermal via array under the component is also recommended to improve heat dissipation.
  • To ensure reliable soldering, Panasonic recommends using a soldering iron with a temperature of 350°C ± 10°C and a soldering time of 3 seconds ± 1 second. The component should be soldered using a no-clean flux and a solder alloy with a melting point of 217°C ± 10°C.
  • The maximum operating temperature range for the DMC204C00R is -40°C to 150°C. However, the component's performance and reliability may degrade if operated at temperatures above 125°C for extended periods.
  • Yes, the DMC204C00R is designed to withstand high-vibration environments. However, Panasonic recommends following the recommended mounting and soldering procedures to ensure reliable operation. Additionally, the component's performance and reliability may be affected by extreme vibration levels.
  • Panasonic recommends storing the DMC204C00R in a dry, cool place with a temperature range of 5°C to 30°C and a relative humidity of 60% or less. The component should be stored in its original packaging or a similar anti-static package to prevent damage from electrostatic discharge.
