HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS
DC Current Gain-Min (hFE):
210
JESD-30 Code:
R-PDSO-F5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMC501010R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC501010R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The DMC501010R has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers can use thermal interface materials (TIMs) such as thermal tape or thermal grease to improve heat transfer between the device and the heat sink. Additionally, a heat sink with a high thermal conductivity and a sufficient surface area can be used to dissipate heat effectively.
While the datasheet specifies the recommended operating temperature range, engineers may want to know the maximum operating temperature range for the DMC501010R. According to Panasonic, the maximum operating temperature range for the DMC501010R is -40°C to 150°C, but this may vary depending on the specific application and environmental conditions.
To ensure the reliability of the DMC501010R in high-vibration environments, engineers can use a variety of techniques such as potting or encapsulation to secure the device, using a robust PCB design with a low coefficient of thermal expansion, and selecting a suitable mounting method such as screwing or adhesive bonding.
The DMC501010R is a sensitive device and requires proper ESD protection during handling, storage, and assembly. Engineers should follow standard ESD protection procedures such as using ESD-safe workstations, wrist straps, and packaging materials to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC501010R Overview

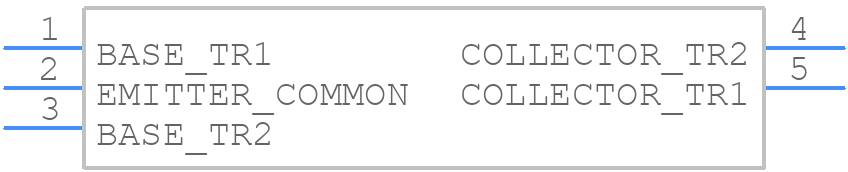

Use the download button to access the DMC501010R schematic symbol, PCB footprint, and 3D model.
