HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE):
210
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Power Dissipation-Max (Abs):
0.15 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMC505010R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC505010R has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
The derating curve is not explicitly provided in the datasheet, but it can be obtained from Panasonic's support team or application engineers. The derating curve helps determine the maximum allowable current at a given temperature, ensuring the device operates within its safe operating area.
While the DMC505010R is a robust device, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic provides guidelines for vibration and shock testing, and it's recommended to consult with their application engineers for specific guidance.
To ensure reliability and longevity, follow Panasonic's recommended operating conditions, storage guidelines, and handling procedures. Additionally, implement proper circuit protection, such as overcurrent and overvoltage protection, and consider using a fuse or circuit breaker.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC505010R Overview

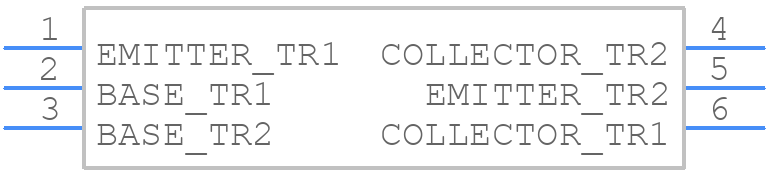

Use the download button to access the DMC505010R schematic symbol, PCB footprint, and 3D model.
