DMC561010R - Panasonic

Description: DMC561010R, Dual Digital Transistor, NPN 100 MA 50 V 10 kΩ, Ratio Of 1, Common Emitter, 5-Pin SMini5 F3 B

Download DMC561010R Model

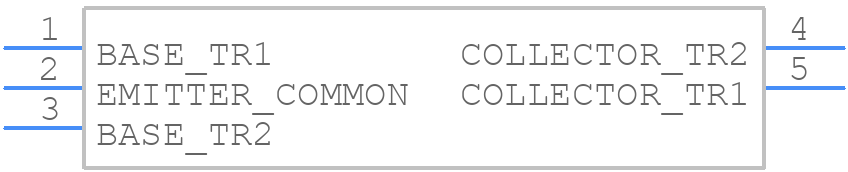

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC561010R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SMini5-F3-B
click to zoom
3D Models
DMC561010R - Panasonic  - 3D model - SO Transistor Flat Lead - SMini5-F3-B
click to zoom

DMC561010R Details

  • Manufacturer Part Number:

    DMC561010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    35

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC561010R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC561010R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
  • The DMC561010R has a high power density, and proper thermal management is crucial to ensure reliable operation. Engineers can use thermal interface materials (TIMs) such as thermal tapes or greases to improve heat transfer between the device and the heat sink. Additionally, a heat sink with a high thermal conductivity and a sufficient surface area can help to dissipate heat effectively.
  • While the datasheet specifies the recommended operating temperature range, engineers may want to know the maximum operating temperature range for the DMC561010R. According to Panasonic, the maximum operating temperature range for the DMC561010R is -40°C to +150°C, but this may vary depending on the specific application and environmental conditions.
  • To ensure the reliability of the DMC561010R in high-vibration environments, engineers can use underfill materials to fill the gap between the device and the PCB, which helps to reduce the stress on the solder joints. Additionally, using a robust PCB design with a sufficient thickness and a secure mounting system can help to minimize the effects of vibration on the device.
  • The DMC561010R has a moisture sensitivity level (MSL) of 3, which means it can withstand a certain level of moisture exposure during the assembly process. However, engineers should still follow proper handling and storage procedures to prevent moisture-related damage.
