HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 4.7
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
80
JESD-30 Code:
R-PDSO-F5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC561040R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC561040R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The DMC561040R is a moisture-sensitive device, and it's essential to handle it according to the manufacturer's recommendations. This includes storing the devices in a dry environment, using a dry pack or desiccant, and following the recommended baking procedure before reflow soldering. It's also crucial to follow the recommended soldering profile to prevent moisture-related defects.
While the datasheet provides the recommended operating temperature range, the maximum operating temperature range may not be explicitly stated. According to Panasonic's documentation, the DMC561040R can operate up to 125°C, but it's essential to consult with the manufacturer or a qualified engineer to determine the safe operating temperature range for a specific application.
The DMC561040R is designed to withstand certain levels of vibration, but it's essential to consult with the manufacturer or a qualified engineer to determine the device's suitability for a specific high-vibration environment. Factors such as the frequency, amplitude, and duration of the vibration should be considered, and additional testing or analysis may be required to ensure the device's reliability.
Troubleshooting issues with the DMC561040R requires a systematic approach. Start by consulting the datasheet and application notes, and then perform basic checks such as verifying the power supply, signal integrity, and thermal management. If the issue persists, consult with the manufacturer's technical support or a qualified engineer to help identify the root cause and recommend a solution.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC561040R Overview

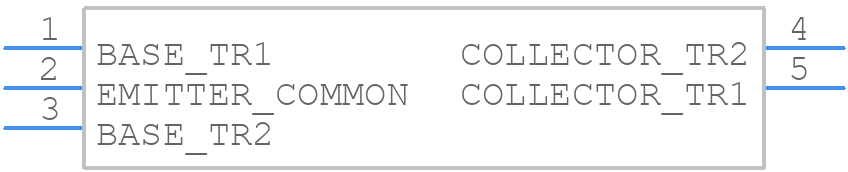

Use the download button to access the DMC561040R schematic symbol, PCB footprint, and 3D model.
