DMC5610M0R - Panasonic

Description: DMC5610M0R, Dual Digital Transistor, NPN 100 MA 50 V 2.2 kΩ, Ratio Of 0.047, Common Emitter, 5-Pin SMini5 F3 B

Download DMC5610M0R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

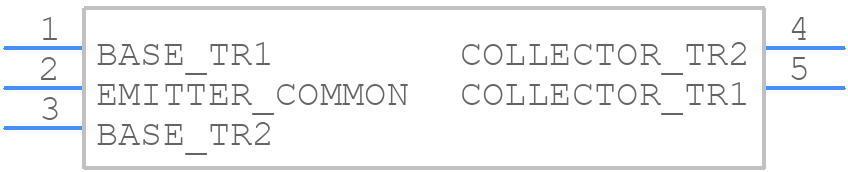

DMC5610M0R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMC5610M0R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SMini5-F3-B
click to zoom
3D Models
DMC5610M0R - Panasonic - 3D model - SO Transistor Flat Lead - SMini5-F3-B
click to zoom

DMC5610M0R Details

  • Manufacturer Part Number:

    DMC5610M0R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 21.36

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    NPN

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC5610M0R Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure reliable operation in high-humidity environments, Panasonic recommends conformal coating, and following the recommended storage and handling procedures to prevent moisture absorption.
  • While the datasheet specifies a maximum operating voltage, it's essential to note that the device can withstand a maximum voltage of 1.5 times the rated voltage for a short duration (less than 1 second) without damage.
  • Yes, the DMC5610M0R is suitable for high-frequency switching applications up to 1 MHz. However, it's crucial to consider the device's switching losses, and ensure that the PCB layout and thermal management are optimized for high-frequency operation.
  • To troubleshoot issues related to the device's internal temperature protection, check for excessive power dissipation, ensure proper thermal management, and verify that the device is not operating in a high-temperature environment.
