HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
YTEOL:
0
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
160
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Power Dissipation-Max (Abs):
0.15 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC564070R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC564070R has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
The derating curve is not explicitly stated in the datasheet, but it can be obtained from Panasonic's support team or application notes. The derating curve shows how the maximum current rating decreases with increasing temperature, ensuring safe operation within the device's thermal limits.
While the DMC564070R is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic provides guidelines for vibration and shock testing, and it's recommended to consult with their support team or perform custom testing to ensure the device meets the specific application requirements.
Follow Panasonic's recommended soldering profile and guidelines to avoid soldering defects. Ensure the PCB is clean and dry, use a soldering iron with a suitable tip, and monitor the soldering temperature to prevent overheating or cold joints.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC564070R Overview

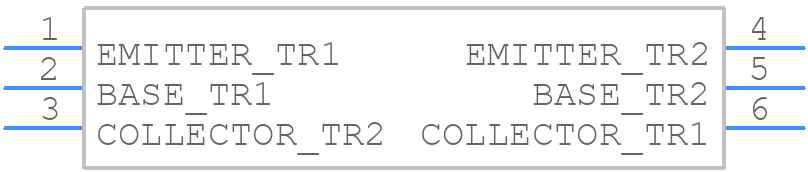

Use the download button to access the DMC564070R schematic symbol, PCB footprint, and 3D model.
