HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
160
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Power Dissipation-Max (Abs):
0.15 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC566050R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC566050R can be found in the Panasonic Electronic Components' recommended land pattern document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a minimum pad size of 1.5mm x 1.5mm and a solder mask clearance of 0.2mm.
To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB with a minimum size of 2mm x 2mm, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the DMC566050R within a temperature range of -20°C to 100°C for optimal performance.
The DMC566050R is designed to withstand moderate vibration levels. However, if your application involves extreme vibration, it's recommended to consult with a mechanical engineer to ensure the component is properly secured and to consider additional vibration-dampening measures.
To ensure proper soldering, follow the recommended soldering profile provided in the datasheet, and use a solder with a melting point of at least 217°C. Additionally, ensure the PCB is clean and free of oxidation, and use a soldering iron with a temperature control system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC566050R Overview

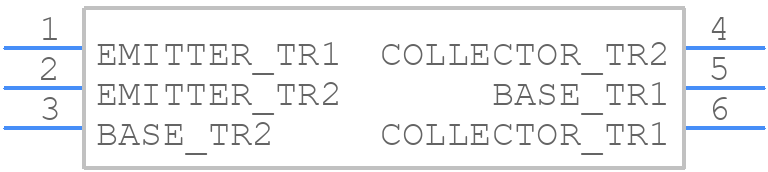

Use the download button to access the DMC566050R schematic symbol, PCB footprint, and 3D model.
