HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE):
210
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN AND PNP
Power Dissipation-Max (Abs):
0.125 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMC904010R Frequently Asked Questions (FAQs)
The recommended land pattern for the DMC904010R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
The DMC904010R is a moisture-sensitive device, and it's essential to handle it according to the manufacturer's recommendations. This includes storing the devices in a dry environment, using a dry pack or desiccant, and following the recommended baking procedure before reflow soldering. It's also crucial to follow the recommended reflow soldering profile to prevent damage from moisture absorption.
While the datasheet specifies the recommended operating temperature range, the maximum operating temperature range may not be explicitly stated. According to Panasonic's documentation, the DMC904010R can operate up to 125°C, but it's essential to consult with the manufacturer or a qualified engineer to determine the safe operating temperature range for a specific application.
The DMC904010R is designed to withstand certain levels of vibration, but it's crucial to consult with the manufacturer or a qualified engineer to determine the device's suitability for a specific high-vibration environment. Factors such as the frequency, amplitude, and duration of the vibration, as well as the device's mounting and soldering, can affect its reliability and performance.
Troubleshooting issues with the DMC904010R requires a systematic approach. Start by consulting the datasheet and application notes, then verify the device's soldering and mounting. Check for any signs of physical damage, and use diagnostic tools such as oscilloscopes or logic analyzers to identify the root cause of the issue. If necessary, consult with the manufacturer's technical support or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC904010R Overview

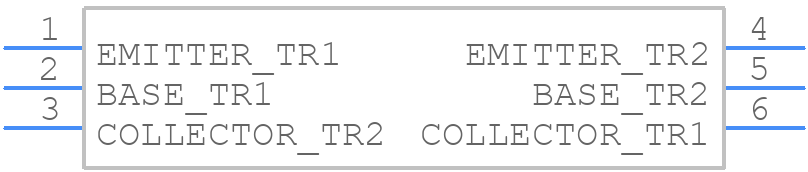

Use the download button to access the DMC904010R schematic symbol, PCB footprint, and 3D model.
