DMC961040R - Panasonic

Description: DMC961040R, Dual Digital Transistor, NPN 100 MA 50 V 10 kΩ, Ratio Of 0.21, Common Emitter, 5-Pin SSMini5 F4 B

Download DMC961040R Model

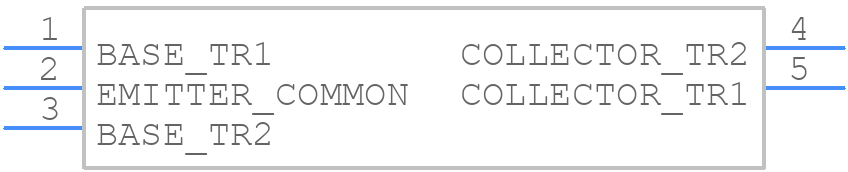

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC961040R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SSMini5-F4-B
click to zoom
3D Models
DMC961040R - Panasonic  - 3D model - SO Transistor Flat Lead - SSMini5-F4-B
click to zoom

DMC961040R Details

  • Manufacturer Part Number:

    DMC961040R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SSMINI5-F4-B, SC-107BB, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO IS 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.125 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC961040R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC961040R can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad layout, solder mask, and solder paste stencil design.
  • The DMC961040R has a high power density, so thermal management is crucial. Ensure good airflow around the component, and consider using a heat sink or thermal interface material to reduce the thermal resistance. The datasheet provides thermal resistance values, which can be used to estimate the junction temperature.
  • The maximum allowable voltage for the DMC961040R is 50V, as specified in the datasheet. Exceeding this voltage may damage the component or affect its reliability.
  • The DMC961040R is designed for high-frequency applications, but its performance may degrade above a certain frequency. The datasheet provides frequency-dependent characteristics, such as insertion loss and return loss, which can help determine its suitability for a specific high-frequency application.
  • To ensure the reliability of the DMC961040R in a humid environment, follow the recommended storage and handling procedures, and consider using a moisture-resistant coating or conformal coating to protect the component. The datasheet provides information on the component's moisture sensitivity level (MSL) and recommended storage conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMC961040R Overview

Use the download button to access the DMC961040R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMC96, or try a keyword search, such as Small Signal Bipolar Transistors
