HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
35
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN AND PNP
Power Dissipation-Max (Abs):
0.125 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC964010R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC964010R has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Consult with Panasonic or a qualified engineer to determine the suitable operating temperature range for your specific application.
The DMC964010R is designed to withstand certain levels of vibration and shock. However, it's crucial to consult with Panasonic or a qualified engineer to determine the device's suitability for your specific environment and to ensure proper mounting and mechanical design.
Follow Panasonic's recommended usage guidelines, ensure proper PCB design and assembly, and implement adequate protection circuits to prevent overvoltage, overcurrent, and ESD damage. Regularly monitor the device's operating conditions and perform maintenance as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC964010R Overview

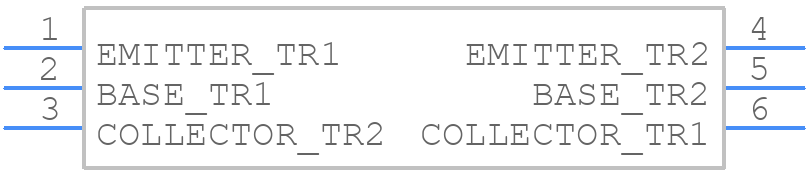

Use the download button to access the DMC964010R schematic symbol, PCB footprint, and 3D model.
