DMC964030R - Panasonic

Description: DMC964030R, Dual Digital Transistor, NPN 100 MA 50 V 47 kΩ, Ratio Of 1, 6-Pin SSMini6 F3 B

Download DMC964030R Model

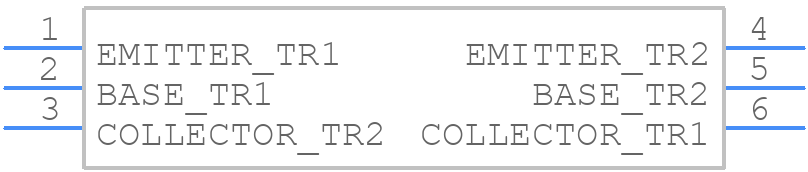

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC964030R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom
3D Models
DMC964030R - Panasonic  - 3D model - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom

DMC964030R Details

  • Manufacturer Part Number:

    DMC964030R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.125 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC964030R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DMC964030R can be found in the Panasonic 'Recommended Mounting Conditions' document, which provides detailed information on pad layout, solder mask, and stencil design.
  • The DMC964030R is a moisture-sensitive device. To prevent damage, it's essential to follow proper handling and storage procedures, such as storing the components in a dry environment, using a desiccant, and baking the components before reflow soldering.
  • The maximum reflow temperature for the DMC964030R is 260°C, with a peak temperature not exceeding 240°C for more than 10 seconds. Exceeding this temperature can cause damage to the component.
  • While the DMC964030R is designed to be robust, it's essential to evaluate the component's performance in high-vibration environments. Panasonic recommends consulting their 'Vibration Test' document and performing additional testing to ensure the component meets the specific application requirements.
  • To troubleshoot issues with the DMC964030R, start by consulting the datasheet and application notes. If the issue persists, contact Panasonic's technical support or a local authorized distributor for assistance. They can provide guidance on debugging and potential replacement or repair options.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMC964030R Overview

Use the download button to access the DMC964030R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMC96, or try a keyword search, such as Small Signal Bipolar Transistors
