HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
80
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Power Dissipation-Max (Abs):
0.125 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMC9640N0R Frequently Asked Questions (FAQs)
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The DMC9640N0R has a high power density, so proper thermal management is crucial. Use a heat sink, thermal interface material, and ensure good airflow around the device. Follow Panasonic's thermal design guidelines and consider using thermal simulation tools to optimize your design.
The DMC9640N0R is sensitive to electrostatic discharge (ESD). Handle the device with ESD-protective equipment, follow proper handling procedures, and ensure that your PCB design includes ESD protection circuits. Panasonic recommends using an ESD protection diode or a TVS (Transient Voltage Suppressor) device.
Yes, the DMC9640N0R is suitable for high-reliability and automotive applications. However, you must ensure that your design meets the specific requirements of these industries, such as AEC-Q100 qualification, and follow Panasonic's guidelines for reliability and quality.
Panasonic provides troubleshooting guides and application notes that can help you identify and resolve common issues. Additionally, use oscilloscopes, logic analyzers, and other diagnostic tools to debug your design. Consult with Panasonic's technical support team or a qualified engineer if you're unsure about the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMC9640N0R Overview

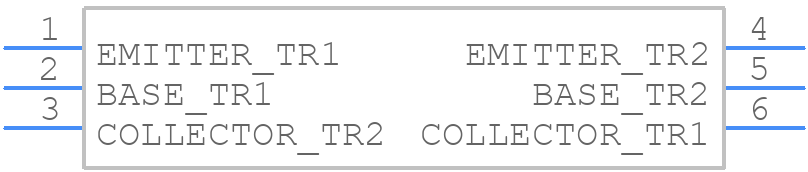

Use the download button to access the DMC9640N0R schematic symbol, PCB footprint, and 3D model.
