DME1W1K-F - Cornell Dubilier

Description: Cornell-Dubilier 1µF Polyester Capacitor PET 100V dc ±10% DME Series

Download DME1W1K-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DME1W1K-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

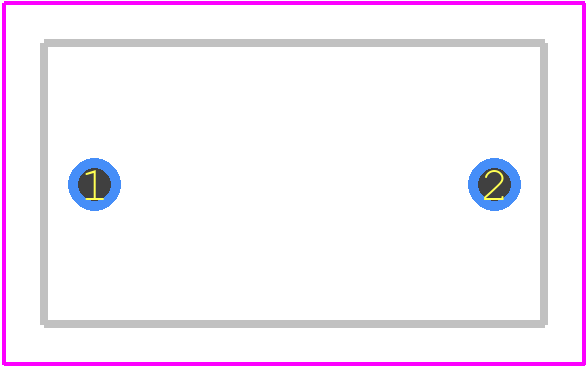

DME1W1K-F - Cornell Dubilier PCB footprint - Other - Other - DME1W1K-F-4
click to zoom
3D Models
DME1W1K-F - Cornell Dubilier - 3D model - Other - DME1W1K-F-4
click to zoom

DME1W1K-F Details

  • Manufacturer Part Number:

    DME1W1K-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6.33

  • Capacitance:

    1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    14 mm

  • JESD-609 Code:

    e3

  • Length:

    12.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

  • Width:

    7 mm

DME1W1K-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DME1W1K-F is 260°C (500°F) for 10 seconds or less.
  • Yes, the DME1W1K-F is a high-reliability capacitor that meets the requirements of MIL-PRF-123 and is suitable for use in high-reliability applications.
  • Yes, the DME1W1K-F is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.
  • The shelf life of the DME1W1K-F capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under controlled humidity and temperature conditions.
  • Yes, the DME1W1K-F capacitor is RoHS compliant and meets the requirements of the European Union's Restriction of Hazardous Substances (RoHS) directive.
