DME20C010R - Panasonic

Description: DME20C010R, Dual Digital Transistor, NPN, PNP 100 (NPN) mA, -100 (PNP) mA 50 (NPN) V, -50 (PNP) V, Base Emitter, 5-Pin

Download DME20C010R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

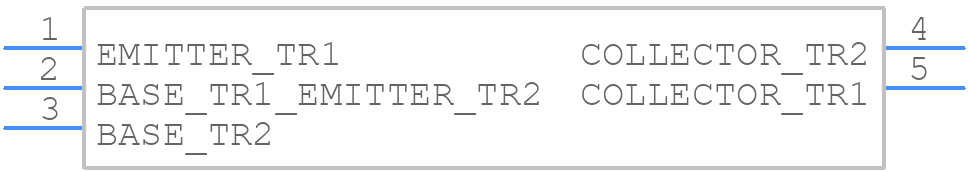

DME20C010R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DME20C010R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DME20C010R - Panasonic - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DME20C010R Details

  • Manufacturer Part Number:

    DME20C010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DME20C010R Overview

Use the download button to access the DME20C010R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DME20, or try a keyword search, such as Small Signal Bipolar Transistors
