DMG263010R - Panasonic

Description: DMG263010R, Dual Digital Transistor, NPN, PNP 100 (NPN) mA, -100 (PNP) mA 50 (NPN) V, -50 (PNP) V 10 kΩ, Ratio Of 1

Download DMG263010R Model
Schematic

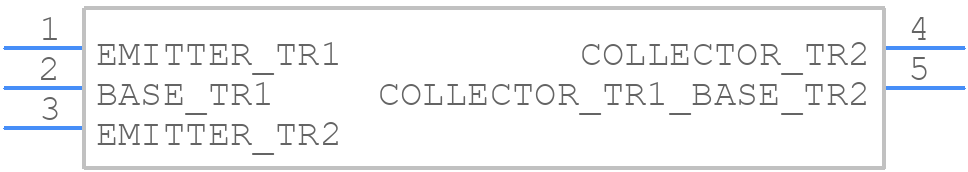

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMG263010R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMG263010R - Panasonic  - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMG263010R Details

  • Manufacturer Part Number:

    DMG263010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SERIES CONNECTED, CENTER TAPPED WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    35

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
