DMG263020R - Panasonic

Description: DMG263020R, Dual Digital Transistor, NPN, PNP 100 (NPN) mA, -100 (PNP) mA 50 (NPN) V, -50 (PNP) V 22 kΩ, Ratio Of 1

Download DMG263020R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

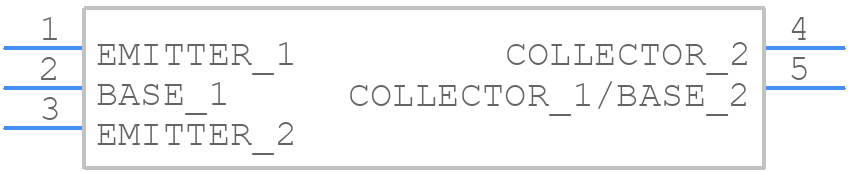

DMG263020R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMG263020R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMG263020R - Panasonic - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMG263020R Details

  • Manufacturer Part Number:

    DMG263020R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SERIES CONNECTED, CENTER TAPPED WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    60

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMG263020R Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package is recommended for heat dissipation. A copper pour on the PCB with multiple vias to a solid ground plane is also recommended to reduce thermal resistance.
  • Ensure that the device is operated within the recommended temperature range (up to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Also, consider derating the device's power handling at high temperatures.
  • The maximum allowable voltage on the gate pin is ±20V. Exceeding this voltage may damage the device.
  • Handle the device with an anti-static wrist strap or mat. Use ESD-sensitive packaging and storage materials. Ground all equipment and tools before handling the device.
  • A gate resistor value between 10Ω to 100Ω is recommended for optimal switching performance. However, the optimal value may vary depending on the specific application and PCB layout.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMG263020R Overview

Use the download button to access the DMG263020R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMG26, or try a keyword search, such as Small Signal Bipolar Transistors
