DMG563010R - Panasonic

Description: DMG563010R, NPN + PNP Bipolar Transistor, 5-Pin SMini5 F3 B

Download DMG563010R Model

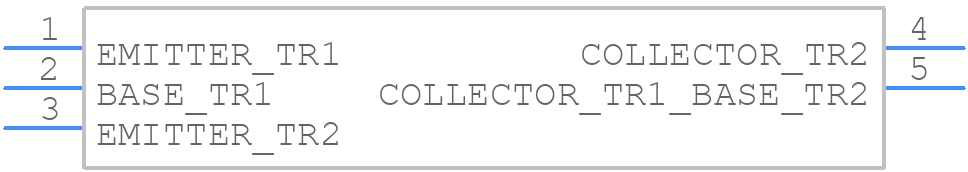

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMG563010R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SMini5-F3-B
click to zoom
3D Models
DMG563010R - Panasonic  - 3D model - SO Transistor Flat Lead - SMini5-F3-B
click to zoom

DMG563010R Details

  • Manufacturer Part Number:

    DMG563010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SERIES CONNECTED, CENTER TAPPED WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    35

  • JESD-30 Code:

    R-PDSO-F5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMG563010R Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder flux to the pins before soldering. Avoid applying excessive force or vibration during the soldering process.
  • Although the datasheet specifies a maximum voltage of 10V, it's recommended to operate the device within 9V to ensure reliable operation and prevent damage.
  • Yes, the DMG563010R is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the device's parasitic capacitance and inductance when designing the circuit.
  • Handle the device with an anti-static wrist strap or mat, and avoid touching the pins or exposed metal surfaces. Use ESD-protected packaging and storage to prevent damage during transportation and storage.
