DMG964040R - Panasonic

Description: DMG964040R, Dual Digital Transistor, NPN, PNP 100 (NPN) mA, -100 (PNP) mA 50 (NPN) V, -50 (PNP) V 10 kΩ, Ratio Of 0.21

Download DMG964040R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

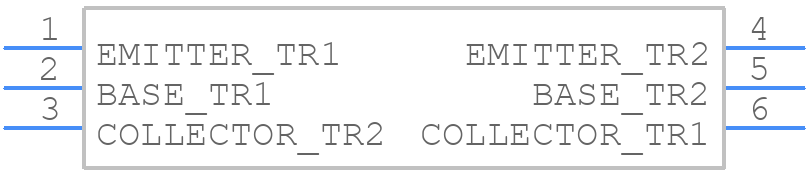

DMG964040R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMG964040R - Panasonic PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom
3D Models
DMG964040R - Panasonic - 3D model - SO Transistor Flat Lead - SSMini6-F3-B
click to zoom

DMG964040R Details

  • Manufacturer Part Number:

    DMG964040R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.125 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMG964040R Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • The DMG964040R has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink or thermal pad, and follow Panasonic's recommended thermal design guidelines.
  • While the datasheet specifies an operating temperature range of -55°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. Consult Panasonic's application notes for more information.
  • The DMG964040R is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to consult Panasonic's reliability and environmental testing data to ensure the device meets your specific requirements.
  • Panasonic provides EMC-related information in their application notes and design guides. Additionally, consult with a qualified EMC engineer to ensure the device meets your specific EMC requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMG964040R Overview

Use the download button to access the DMG964040R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMG96, or try a keyword search, such as Small Signal Bipolar Transistors
