The recommended PCB footprint for the DMHC3025LSD-13 is a 2.5mm x 2.5mm QFN package with a 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask layout.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 125°C), and that the PCB is designed to dissipate heat effectively. Additionally, consider using thermal vias and thermal pads to improve heat dissipation.
The maximum current rating for the DMHC3025LSD-13 is 2.5A per channel. However, the actual current handling capability may be limited by the PCB design, thermal considerations, and other factors.
To protect the DMHC3025LSD-13 from ESD and overvoltage, use ESD protection devices such as TVS diodes or ESD arrays, and ensure that the PCB design includes adequate overvoltage protection measures such as voltage regulators and overvoltage protection circuits.
The recommended layout and routing for the DMHC3025LSD-13 involves keeping the signal traces short and direct, using a solid ground plane, and minimizing the use of vias and jumpers. Additionally, ensure that the power and ground pins are connected to a solid power and ground plane.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMHC3025LSD-13 Overview

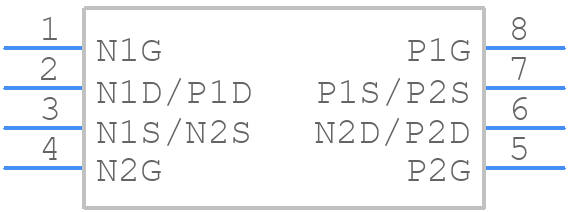

Use the download button to access the DMHC3025LSD-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMHC3,
or try a keyword search, such as Power Field-Effect Transistors
