DMHT10H032LFJ-13 - Diodes Incorporated

Description: Mosfet Array 100V 6A (Ta) 900mW Surface Mount V-DFN5045-12 (Type C)

Download DMHT10H032LFJ-13 Model

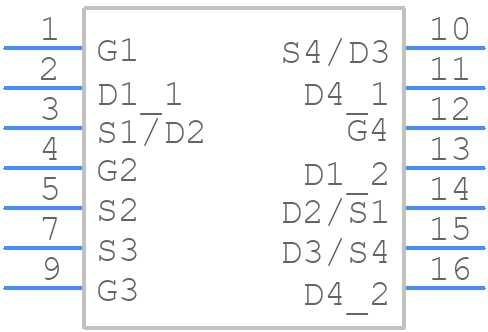

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMHT10H032LFJ-13 - Diodes Incorporated PCB footprint - Other - Other - V-DFN5045-12 (Type C)
click to zoom
3D Models
DMHT10H032LFJ-13 - Diodes Incorporated  - 3D model - Other - V-DFN5045-12 (Type C)
click to zoom

DMHT10H032LFJ-13 Details

  • Manufacturer Part Number:

    DMHT10H032LFJ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    V-DFN5045-12, 12 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    25.3 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    2 BANKS, SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    6 A

  • Drain-source On Resistance-Max:

    0.033 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    6.9 pF

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    12

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1.9 W

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMHT10H032LFJ-13 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DMHT10H032LFJ-13 can be found in the Diodes Incorporated's package outline drawing, which is usually available on their website or through their customer support. The drawing provides detailed dimensions and land patterns for optimal mounting and soldering.
  • To ensure reliable operation of the DMHT10H032LFJ-13 in high-temperature environments, follow the recommended operating temperature range specified in the datasheet. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management to keep the device within its specified temperature range.
  • The DMHT10H032LFJ-13 has built-in ESD protection, but it's still important to follow standard ESD handling precautions when handling the device. This includes using ESD-safe workstations, wrist straps, and packaging materials, as well as minimizing static-generating activities during device handling and assembly.
  • The DMHT10H032LFJ-13 is rated for a maximum voltage of 32V. While it can be used in high-voltage applications, it's essential to ensure that the device is operated within its specified voltage range and that proper voltage derating is applied to prevent overvoltage stress. Additionally, consider using voltage regulators or overvoltage protection circuits to prevent voltage excursions.
  • To troubleshoot issues with the DMHT10H032LFJ-13, start by reviewing the datasheet and application notes to ensure that the device is being used within its specified operating conditions. Then, use standard debugging techniques such as voltage and current measurements, signal tracing, and fault isolation to identify the root cause of the issue. If necessary, consult with Diodes Incorporated's technical support or a qualified engineer for further assistance.
