The recommended PCB footprint for the DMMT3906W-7 is a standard SOT-23 package with a 1.3mm x 1.3mm body size. The datasheet provides a recommended land pattern and soldering guidelines.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions and derating guidelines in the datasheet. Additionally, consider using a heat sink or thermal pad to reduce the junction temperature, and ensure good airflow around the device.
The maximum allowable voltage on the input pins of the DMMT3906W-7 is 6V. Exceeding this voltage may damage the device or affect its reliability.
Yes, the DMMT3906W-7 can be used in switching regulator applications. However, ensure that the device is properly biased and that the switching frequency is within the recommended range to avoid oscillations or instability.
To calculate the power dissipation of the DMMT3906W-7, use the formula Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Consider the device's thermal resistance and maximum junction temperature to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMMT3906W-7 Overview

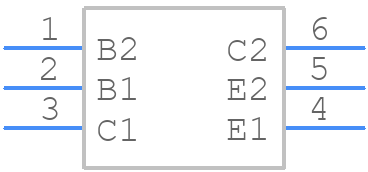

Use the download button to access the DMMT3906W-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMMT3,
or try a keyword search, such as Small Signal Bipolar Transistors
