DMN2100UDM-7 - Diodes Incorporated

Description: MOSFET 900mW 20Vdss

Download DMN2100UDM-7 Model

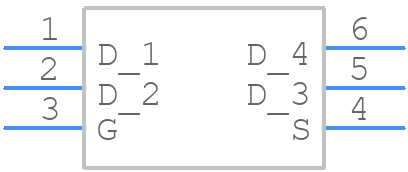

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN2100UDM-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DMN2100UDM-7
click to zoom
3D Models
DMN2100UDM-7 - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - DMN2100UDM-7
click to zoom

DMN2100UDM-7 Details

  • Manufacturer Part Number:

    DMN2100UDM-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC PACKAGE-6

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    3.3 A

  • Drain-source On Resistance-Max:

    0.055 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    84 pF

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.9 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN2100UDM-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended to be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a bias resistor network can be used to achieve this.
  • Handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials to prevent damage. Avoid touching the device pins or exposing it to static electricity.
  • The device is rated for operation up to 125°C. However, the maximum junction temperature should not exceed 150°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • Use a multimeter to measure voltage and current at the device pins. Check for proper biasing, input voltage, and thermal management. Consult the datasheet and application notes for troubleshooting guidelines.
