DMN26D0UDJ-7 - Diodes Incorporated

Description: Diodes Inc DMN26D0UDJ-7 Dual N-channel MOSFET Transistor, 0.24 A, 20 V, 6-Pin SOT-963

Download DMN26D0UDJ-7 Model

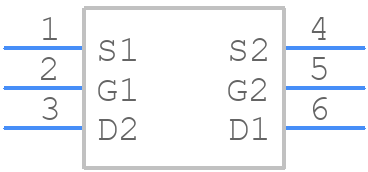

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN26D0UDJ-7 - Diodes Incorporated PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - DMN26D0UDJ-7
click to zoom
3D Models
DMN26D0UDJ-7 - Diodes Incorporated  - 3D model - SO Transistor Flat Lead - DMN26D0UDJ-7
click to zoom

DMN26D0UDJ-7 Details

  • Manufacturer Part Number:

    DMN26D0UDJ-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, ULTRA SMALL, PLASTIC PACKAGE-6

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Additional Feature:

    ESD PROTECTION

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    0.18 A

  • Drain-source On Resistance-Max:

    3 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN26D0UDJ-7 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DMN26D0UDJ-7 is -55°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended derating guidelines for the device, especially in high-temperature applications. This includes reducing the voltage and current ratings as the temperature increases.
  • The maximum allowable power dissipation for the DMN26D0UDJ-7 is 2.5W. However, this value can vary depending on the specific application and operating conditions.
  • Yes, the DMN26D0UDJ-7 can be used in switching regulator applications due to its fast switching speed and low voltage drop. However, it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range.
  • To protect the DMN26D0UDJ-7 from ESD, it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, the device should be soldered into the circuit board using a low-static soldering iron and proper soldering techniques.
