Part Image

DMN3024SFG-7 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 25V-30 PowerD3333-8,2K

Download DMN3024SFG-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

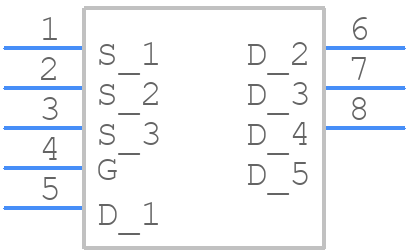

DMN3024SFG-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
DMN3024SFG-7 - Diodes Incorporated PCB footprint - Other - Other - PowerDI3333-8_24
click to zoom
3D Models
DMN3024SFG-7 - Diodes Incorporated - 3D model - Other - PowerDI3333-8_24
click to zoom

DMN3024SFG-7 Details

  • Manufacturer Part Number:

    DMN3024SFG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC, POWERDI3333-8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    6.3 A

  • Drain-source On Resistance-Max:

    0.023 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    2.2 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN3024SFG-7 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • To ensure proper biasing, follow the recommended voltage and current ratings, and use a suitable voltage regulator or biasing circuit to maintain a stable voltage supply.
  • Handle the device with care to prevent mechanical stress, and store it in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions during handling.
  • While the DMN3024SFG-7 is a high-performance device, it's essential to consult with Diodes Incorporated or a qualified engineer to ensure it meets the specific requirements of your high-reliability or automotive application.
  • Consult the datasheet and application notes for troubleshooting guidelines. Common issues can be resolved by checking the PCB layout, voltage supply, and biasing circuit. If issues persist, contact Diodes Incorporated or a qualified engineer for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMN3024SFG-7 Overview

Use the download button to access the DMN3024SFG-7 schematic symbol, PCB footprint, and 3D model.
