The recommended PCB footprint for the DMN3027LFG-7 is a 2x2 array of 0.5mm pitch pads, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's essential to consult with the manufacturer's application note for specific guidance.
To ensure proper biasing, follow the recommended operating conditions outlined in the datasheet. Typically, this involves connecting the gate to a voltage source through a resistor, and the source to ground through another resistor. Consult the datasheet and application notes for specific values and configurations.
The DMN3027LFG-7 has a high power density, so thermal management is crucial. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias, heat sinks, or thermal interface materials to dissipate heat. Consult the datasheet and application notes for specific guidance on thermal design.
To protect the DMN3027LFG-7 from ESD, follow standard ESD precautions during handling and assembly. Use ESD-safe materials, grounding straps, and ionizers to minimize static electricity. Ensure that the device is stored in an ESD-safe environment, and consider using ESD protection devices in the circuit.
The DMN3027LFG-7 is a high-reliability device, with a typical lifespan of 10-15 years or more, depending on operating conditions. Consult the datasheet and manufacturer's reliability reports for specific information on MTBF, FIT rates, and other reliability metrics.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMN3027LFG-7 Overview

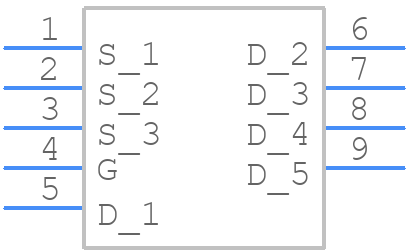

Use the download button to access the DMN3027LFG-7 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN30,
or try a keyword search, such as Small Signal Field-Effect Transistors
