DMN3065LW-7 - Diodes Incorporated

Description: Diodes Inc DMN3065LW-7 N-channel MOSFET Transistor, 4 A, 30 V, 3-Pin SOT-323

Download DMN3065LW-7 Model

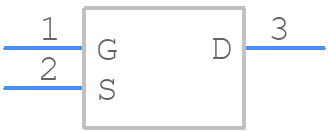

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN3065LW-7 - Diodes Incorporated PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - DMN3065LW-7-
click to zoom
3D Models
DMN3065LW-7 - Diodes Incorporated  - 3D model - SOT23 (3-Pin) - DMN3065LW-7-
click to zoom

DMN3065LW-7 Details

  • Manufacturer Part Number:

    DMN3065LW-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    4 A

  • Drain-source On Resistance-Max:

    0.052 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN3065LW-7 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DMN3065LW-7 is a standard SOT23-6L package with a 1.5mm x 1.5mm body size and a 0.5mm pitch.
  • To ensure proper biasing, connect the input pin (VIN) to a stable voltage source, and the enable pin (EN) to a logic-level signal. The output pin (VOUT) should be decoupled with a 1uF ceramic capacitor.
  • The maximum input voltage that the DMN3065LW-7 can handle is 6.5V. Exceeding this voltage may cause damage to the device.
  • Yes, the DMN3065LW-7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures, so thermal management is crucial.
  • The output voltage of the DMN3065LW-7 can be calculated using the formula: VOUT = (VIN x (R1 / (R1 + R2))), where R1 and R2 are the resistors in the output voltage divider network.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMN3065LW-7 Overview

Use the download button to access the DMN3065LW-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN30, or try a keyword search, such as Small Signal Field-Effect Transistors
