DMN6140L-7 - Diodes Incorporated

Description: Diodes Inc DMN6140L-7 N-channel MOSFET Transistor, 2.9 A, 60 V, 3-Pin SOT-23

Download DMN6140L-7 Model

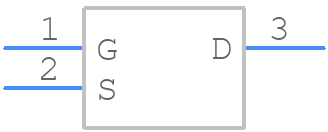

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN6140L-7 - Diodes Incorporated PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - DMN6140L-7-AP
click to zoom
3D Models
DMN6140L-7 - Diodes Incorporated  - 3D model - SOT23 (3-Pin) - DMN6140L-7-AP
click to zoom

DMN6140L-7 Details

  • Manufacturer Part Number:

    DMN6140L-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    GREEN, PLASTIC PACKAGE-3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6.9

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    1.6 A

  • Drain-source On Resistance-Max:

    0.14 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN6140L-7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the DMN6140L-7 is 2.5V to 5.5V.
  • To ensure proper biasing, connect the gate to a voltage source through a resistor, and connect the source to ground through a resistor. The recommended biasing voltage is typically around 1/3 to 1/2 of the supply voltage.
  • The maximum current rating for the DMN6140L-7 is 4A. However, it's recommended to operate the device within the specified current rating to ensure reliability and prevent overheating.
  • To protect the DMN6140L-7 from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the workspace is ESD-safe, and use ESD-protective packaging and materials.
  • The thermal resistance of the DMN6140L-7 is typically around 40°C/W. This value may vary depending on the specific package and application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMN6140L-7 Overview

Use the download button to access the DMN6140L-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN61, or try a keyword search, such as Small Signal Field-Effect Transistors
