DMN62D1LFDQ-7 - Diodes Incorporated

Description: N-CHANNEL ENHANCEMENT MODE MOSFET 60V

Download DMN62D1LFDQ-7 Model

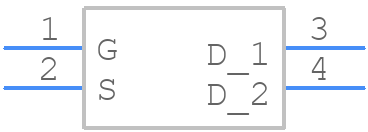

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMN62D1LFDQ-7 - Diodes Incorporated PCB footprint - Other - Other - U-DFN1212-3
click to zoom
3D Models
DMN62D1LFDQ-7 - Diodes Incorporated  - 3D model - Other - U-DFN1212-3
click to zoom

DMN62D1LFDQ-7 Details

  • Manufacturer Part Number:

    DMN62D1LFDQ-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    U-DFN1212-3, 3 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-10-22

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    0.4 A

  • Drain-source On Resistance-Max:

    2 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    3.6 pF

  • JESD-30 Code:

    S-PDSO-N3

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Reference Standard:

    AEC-Q101; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMN62D1LFDQ-7 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the DMN62D1LFDQ-7 is 1.65V to 5.5V.
  • To ensure proper biasing, connect the input voltage (VIN) to a stable voltage source, and decouple the input with a 1uF capacitor to ground. Also, ensure the output (VOUT) is properly decoupled with a 10uF capacitor to ground.
  • The maximum output current capability of the DMN62D1LFDQ-7 is 2A.
  • To handle thermal management, ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
  • The DMN62D1LFDQ-7 comes in a QFN-8 package.
