Diodes Incorporated recommends a PCB layout with a solid ground plane, minimal thermal vias, and a heat sink attached to the top of the device to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider derating the device's power handling capabilities.
The DMNH6012SPSQ-13 has built-in ESD protection, but it's still crucial to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
Yes, the DMNH6012SPSQ-13 is suitable for high-frequency switching applications due to its low capacitance and inductance. However, it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the application's operating frequency is within the device's specified range.
The optimal gate resistor value depends on the specific application requirements, such as switching frequency, voltage, and current. A general guideline is to start with a value between 10 ohms and 100 ohms and adjust based on the device's switching characteristics and the application's performance requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMNH6012SPSQ-13 Overview

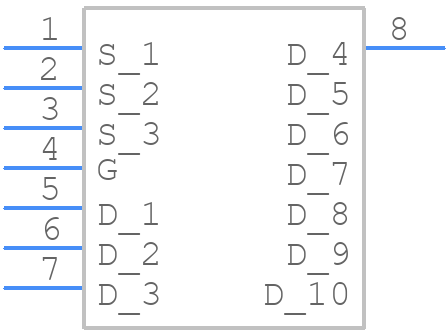

Use the download button to access the DMNH6012SPSQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMNH6,
or try a keyword search, such as Power Field-Effect Transistors
