DMNH6042SPDQ-13 - Diodes Incorporated

Description: 60V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET

Download DMNH6042SPDQ-13 Model

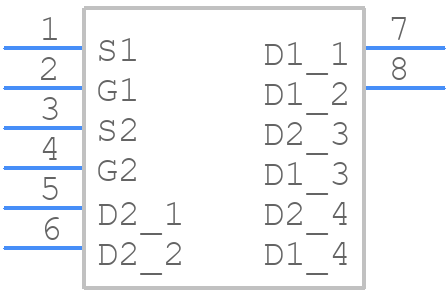

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMNH6042SPDQ-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8 (Type C)_2022
click to zoom
3D Models
DMNH6042SPDQ-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8 (Type C)_2022
click to zoom

DMNH6042SPDQ-13 Details

  • Manufacturer Part Number:

    DMNH6042SPDQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Additional Feature:

    HIGH RELIABILITY

  • Avalanche Energy Rating (Eas):

    65 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    5.7 A

  • Drain-source On Resistance-Max:

    0.05 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    32 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMNH6042SPDQ-13 Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a PCB layout with a solid ground plane and thermal vias under the device to improve heat dissipation. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
  • The maximum allowed voltage on the input pins is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its reliability.
  • Yes, the DMNH6042SPDQ-13 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the application's requirements are within the device's specifications.
  • To prevent electrostatic discharge (ESD) damage, follow proper ESD handling and assembly procedures, such as using ESD-safe materials, grounding straps, and ionizers. Ensure that the device is handled and assembled in an ESD-controlled environment.
