The recommended PCB footprint for the DMP2018LFK-7 is a 2x2 array of 0.5mm pitch pads, with a thermal pad in the center. The datasheet provides a recommended land pattern, but it's essential to consult the manufacturer's application note for detailed guidelines.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure to provide a stable voltage supply to the device. Additionally, consider using a voltage regulator to regulate the voltage supply and ensure a stable operating point.
The DMP2018LFK-7 has a high power density, so thermal management is crucial. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink to dissipate heat. The datasheet provides thermal resistance values to help with thermal design.
Yes, the DMP2018LFK-7 is suitable for high-frequency applications. However, it's essential to consider the device's parasitic capacitance and inductance, and to use proper PCB layout and decoupling techniques to minimize signal degradation and ensure signal integrity.
The DMP2018LFK-7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMP2018LFK-7 Overview

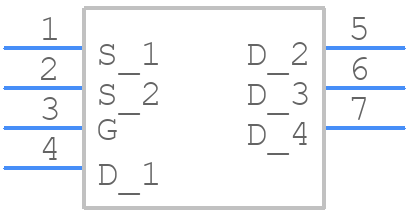

Use the download button to access the DMP2018LFK-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMP20,
or try a keyword search, such as Power Field-Effect Transistors
