DMP3035SFG-7 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 25V-30 PowerDI3333-8 T&R 2K

Download DMP3035SFG-7 Model

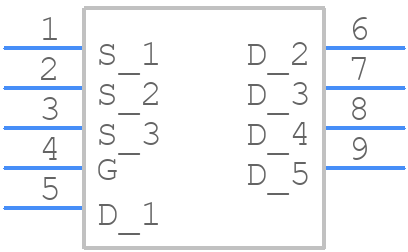

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMP3035SFG-7 - Diodes Incorporated PCB footprint - Other - Other - POWERDI3333-8_1
click to zoom
3D Models
DMP3035SFG-7 - Diodes Incorporated  - 3D model - Other - POWERDI3333-8_1
click to zoom

DMP3035SFG-7 Details

  • Manufacturer Part Number:

    DMP3035SFG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    GREEN, PLASTIC, POWERDI3333-8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    3

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7 A

  • Drain-source On Resistance-Max:

    0.02 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.3 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMP3035SFG-7 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern is recommended. The PCB should also have a solid ground plane to reduce thermal resistance.
  • The device requires a bias voltage of 2.5V to 5.5V. A stable voltage regulator and decoupling capacitors are recommended to ensure a clean power supply. Additionally, the input and output pins should be properly terminated to prevent ringing and oscillations.
  • The maximum operating frequency of the DMP3035SFG-7 is 3.5 GHz. However, the device can be used at higher frequencies with reduced performance. It's recommended to consult the datasheet and application notes for more information.
  • The DMP3035SFG-7 has built-in ESD protection, but additional protection measures can be taken. A TVS diode or a zener diode can be used to protect the device from overvoltage. It's also recommended to follow proper handling and storage procedures to prevent ESD damage.
  • The recommended operating temperature range for the DMP3035SFG-7 is -40°C to 125°C. However, the device can be operated at temperatures outside this range with reduced performance and reliability.
