DMPH6050SPD-13 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 41V-60V

Download DMPH6050SPD-13 Model

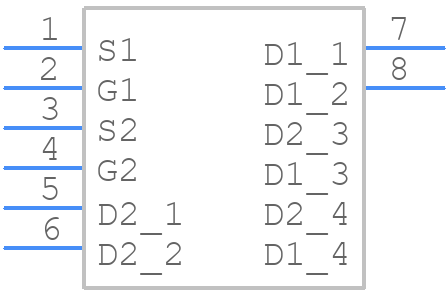

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMPH6050SPD-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8 (Type C)_2022
click to zoom
3D Models
DMPH6050SPD-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8 (Type C)_2022
click to zoom

DMPH6050SPD-13 Details

  • Manufacturer Part Number:

    DMPH6050SPD-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    30 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    26 A

  • Drain-source On Resistance-Max:

    0.048 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    70 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.8 W

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Reference Standard:

    MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMPH6050SPD-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern around the thermal pad is suggested. Additionally, a solid ground plane on the bottom layer can help to reduce thermal resistance.
  • The DMPH6050SPD-13 requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 1mA to 10mA on the IBIAS pin. Ensure the bias voltage and current are within the recommended range to achieve optimal performance.
  • The maximum allowable power dissipation for the DMPH6050SPD-13 is 1.5W. Ensure the device is operated within this power rating to prevent overheating and damage.
  • The DMPH6050SPD-13 is an ESD-sensitive device. Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device. Ensure the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the device from electrostatic discharge.
  • Store the DMPH6050SPD-13 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 125°C, and the recommended storage humidity is 60% RH or less.
