DMT6007LFG-13 footprint, schematic symbol and 3D model by Diodes Incorporated

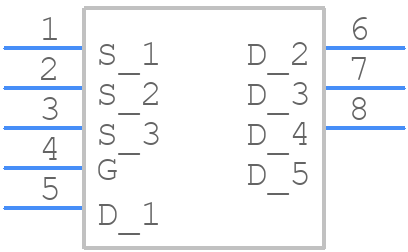

Symbol

click to zoom

PCB Footprints

DMT6007LFG-13 - Diodes Incorporated PCB footprint - Other - Other - POWERDI®3333-8

click to zoom

3D Models

DMT6007LFG-13 - Diodes Incorporated - 3D model - Other - POWERDI®3333-8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DMT6007LFG-13
Part Number DMT6007LFG-13
Manufacturer Diodes Incorporated
Pin Count 9
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - POWERDI®3333-8
Released Date Sep 17, 2020
Last Modified Date Jul 22, 2024 3:11 PM UTC
Pinout / Pin List Click Here (Member Only)

DMT6007LFG-13 Details

Manufacturer Part Number:
DMT6007LFG-13
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Avalanche Energy Rating (Eas):
20 mJ
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
60 V
Drain Current-Max (ID):
15 A
Drain-source On Resistance-Max:
0.006 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss):
38.5 pF
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
8
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
255
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
2.2 W
Pulsed Drain Current-Max (IDM):
80 A
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

DMT6007LFG-13 Frequently Asked Questions (FAQs)

Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated ground plane is ideal.
The DMT6007LFG-13 requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and within the recommended range. A decoupling capacitor of 10nF to 100nF should be placed close to the device to filter out noise.
The DMT6007LFG-13 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
Yes, the DMT6007LFG-13 is suitable for high-frequency applications up to 1GHz. However, the device's performance may degrade at frequencies above 500MHz. Ensure proper PCB layout and component selection to minimize parasitic effects.
The DMT6007LFG-13 has an integrated ESD protection diode. However, it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-safe environment.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DMT6007LFG-13 Overview

Use the download button to access the DMT6007LFG-13 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DMT60, or try a keyword search, such as Power Field-Effect Transistors
