The recommended PCB footprint for the DMTH43M8LFGQ-13 is a QFN4040-24 package with a 4x4mm body size and 0.5mm pitch. A detailed footprint recommendation can be found in the Diodes Incorporated application note or by contacting their technical support.
To ensure proper soldering, follow the recommended reflow soldering profile provided in the datasheet. Use a solder paste with a melting point between 217°C to 227°C, and maintain a peak temperature of 260°C for 10-30 seconds. Avoid overheating or underheating the device.
The DMTH43M8LFGQ-13 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
The DMTH43M8LFGQ-13 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you must operate the device in a humid environment, ensure proper conformal coating and follow the recommended storage and handling procedures to minimize moisture exposure.
Handle the DMTH43M8LFGQ-13 by the body, avoiding touching the pins or electrical connections. Store the devices in their original packaging or in a dry, ESD-protected environment. Avoid exposing the devices to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMTH43M8LFGQ-13 Overview

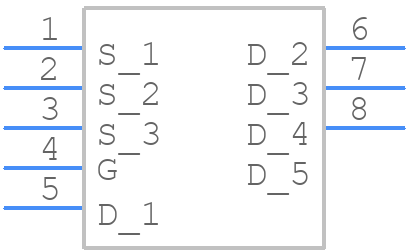

Use the download button to access the DMTH43M8LFGQ-13 schematic symbol and PCB footprint.
