DMTH45M5LPDWQ-13 - Diodes Incorporated

Description: MOSFET MOSFET BVDSS: 31V~40V PowerDI5060-8/SWP T&R 2.5K

Download DMTH45M5LPDWQ-13 Model

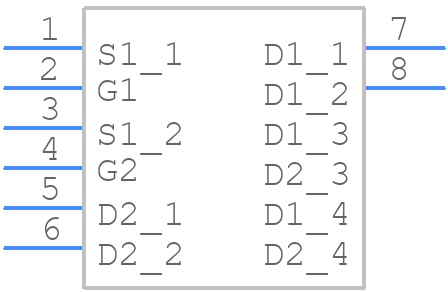

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMTH45M5LPDWQ-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8/SWP(Type UXD)
click to zoom
3D Models
DMTH45M5LPDWQ-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8/SWP(Type UXD)
click to zoom

DMTH45M5LPDWQ-13 Details

  • Manufacturer Part Number:

    DMTH45M5LPDWQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    19.6 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    79 A

  • Drain-source On Resistance-Max:

    0.0055 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    30 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    60 W

  • Pulsed Drain Current-Max (IDM):

    316 A

  • Reference Standard:

    AEC-Q101; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH45M5LPDWQ-13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DMTH45M5LPDWQ-13 is -40°C to 150°C.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet, and use a solder with a melting point above 217°C.
  • The maximum allowed voltage for the DMTH45M5LPDWQ-13 is 45V.
  • Yes, the DMTH45M5LPDWQ-13 is suitable for high-frequency applications up to 5GHz, but ensure proper PCB layout and decoupling to minimize parasitic effects.
  • Handle the DMTH45M5LPDWQ-13 with ESD-protective equipment and follow proper ESD handling procedures to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMTH45M5LPDWQ-13 Overview

Use the download button to access the DMTH45M5LPDWQ-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMTH4, or try a keyword search, such as Power Field-Effect Transistors
