DMTH45M5SPDWQ-13 - Diodes Incorporated

Description: MOSFETs MOSFET BVDSS: 31V-40V PowerDI5060-8/SWP T&R 2.5K

Download DMTH45M5SPDWQ-13 Model

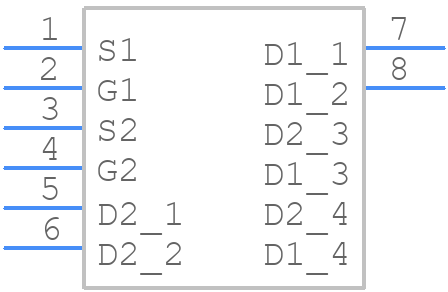

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMTH45M5SPDWQ-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8/SWP(Type UXD)
click to zoom
3D Models
DMTH45M5SPDWQ-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8/SWP(Type UXD)
click to zoom

DMTH45M5SPDWQ-13 Details

  • Manufacturer Part Number:

    DMTH45M5SPDWQ-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    20.6 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    79 A

  • Drain-source On Resistance-Max:

    0.0055 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    21 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    60 W

  • Pulsed Drain Current-Max (IDM):

    316 A

  • Reference Standard:

    AEC-Q101; MIL-STD-202

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH45M5SPDWQ-13 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the DMTH45M5SPDWQ-13 is -55°C to 150°C.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet, and use a solder with a melting point above 217°C.
  • The maximum allowed voltage for the DMTH45M5SPDWQ-13 is 45V.
  • Yes, the DMTH45M5SPDWQ-13 is suitable for high-frequency applications up to 5GHz, but ensure proper PCB layout and decoupling to minimize parasitic effects.
  • Handle the DMTH45M5SPDWQ-13 with ESD-protective equipment and follow proper ESD handling procedures to prevent damage.
