DMTH6002LPS-13 - Diodes Incorporated

Description: 60V +175°C N-CHANNEL ENHANCEMENT MODE MOSFET

Download DMTH6002LPS-13 Model

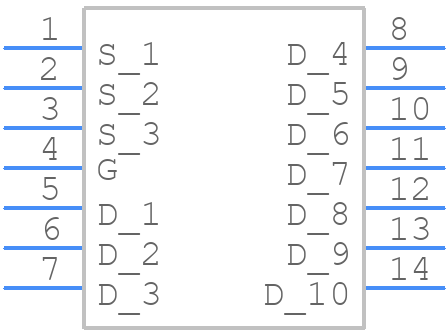

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMTH6002LPS-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8_2026
click to zoom
3D Models
DMTH6002LPS-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8_2026
click to zoom

DMTH6002LPS-13 Details

  • Manufacturer Part Number:

    DMTH6002LPS-13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Avalanche Energy Rating (Eas):

    294 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    100 A

  • Drain-source On Resistance-Max:

    0.003 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    200 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMTH6002LPS-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern around the thermal pad is suggested.
  • Ensure proper thermal management, follow recommended PCB layout, and avoid exceeding the maximum junction temperature (Tj) of 150°C. Also, consider derating the device's power handling at higher temperatures.
  • The DMTH6002LPS-13 has built-in ESD protection, but additional external protection may be necessary depending on the application. Follow proper PCB design and handling practices to prevent latch-up.
  • The DMTH6002LPS-13 is AEC-Q101 qualified, making it suitable for automotive applications. However, additional testing and validation may be required for high-reliability applications.
  • Use a combination of visual inspection, voltage and current measurements, and oscilloscope analysis to identify issues. Consult the datasheet and application notes for specific troubleshooting guidelines.
