- Part Number DO061A
- Manufacturer CRYDOM
- Pin Count 4
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - DO061A-1
- Released Date May 10, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DO061A Details
-
Manufacturer Part Number:
DO061A
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
ROHS COMPLIANT, PLASTIC, MINISIP-4
-
HTS Code:
8541.40.95.00
-
Date Of Intro:
1998-04-09
-
Manufacturer:
Crydom Inc
-
Additional Feature:
HIGH RELIABILITY
-
Control Voltage:
3 V
-
Input Type:
DC
DO061A Frequently Asked Questions (FAQs)
-
The DO061A can handle surge currents up to 100A for 10ms, but it's recommended to derate the current to 60A for continuous operation.
-
The DO061A has built-in overvoltage protection, which will turn off the output if the input voltage exceeds 30V. It will automatically reset when the input voltage returns to a safe level.
-
The thermal derating curve for the DO061A is not explicitly stated in the datasheet, but Crydom recommends derating the current by 1.5% per degree Celsius above 25°C.
-
Yes, the DO061A can be used in parallel to increase the current handling capability, but it's essential to ensure that the devices are properly synchronized and matched to avoid current imbalance.
-
Crydom recommends a PCB layout with a large copper area for heat dissipation and a thermal interface material (TIM) between the device and the heat sink. A heat sink with a thermal resistance of 10°C/W or lower is recommended.
Trust Checks
Community Provided
System Verified
Community Approved
DO061A Overview

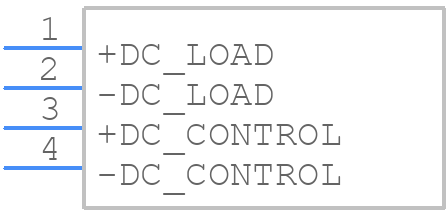

Use the download button to access the DO061A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DO061,
or try a keyword search, such as Solid State Relays
