DOT050V-010.0M - Connor Winfield

Description: XTAL OSC VCTCXO 10.0000MHZ LVCMO

Download DOT050V-010.0M Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DOT050V-010.0M model

Email notifications will be applied after download.

Send part feedback

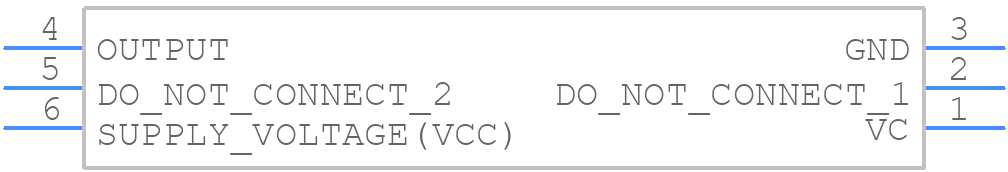

Symbol

DOT050V-010.0M - Connor Winfield - PCB symbol

PCB Footprints

DOT050V-010.0M - Connor Winfield PCB footprint - Other - Other - DOT050V-010.0M-1

3D Models

DOT050V-010.0M - Connor Winfield - 3D model - Other - DOT050V-010.0M-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for DOT050V-010.0M
Part Number DOT050V-010.0M
Manufacturer Connor Winfield
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - DOT050V-010.0M-1
Released Date Mar 4, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DOT050V-010.0M Details

Manufacturer Part Number:
DOT050V-010.0M
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Connor-Winfield
YTEOL:
5
Additional Feature:
TR, 13 INCH
Aging:
0.3 PPM/FIRST YEAR
Control Voltage-Max:
3 V
Control Voltage-Min:
0.3 V
Fall Time-Max:
8 ns
Frequency Adjustment-Mechanical:
NO
Frequency Deviation/Pullability:
10 ppm
Frequency Stability:
0.05%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
10 MHz
Operating Temperature-Max:
70 °C
Oscillator Type:
LVCMOS
Output Load:
15 pF
Physical Dimension:
13.6mm x 9.15mm x 6.86mm
Rise Time-Max:
8 ns
Supply Voltage-Max:
3.465 V
Supply Voltage-Min:
3.135 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

DOT050V-010.0M Frequently Asked Questions (FAQs)

The operating temperature range of the DOT050V-010.0M is -40°C to +85°C.
Yes, the DOT050V-010.0M is designed for high-reliability applications and is built with a ruggedized design to withstand harsh environments.
The typical start-up time for the DOT050V-010.0M is 10ms, but this can vary depending on the specific application and operating conditions.
Yes, the DOT050V-010.0M is designed to provide low jitter performance, making it suitable for applications requiring high-frequency stability and low phase noise.
Yes, the DOT050V-010.0M is compatible with lead-free soldering processes and is RoHS compliant.

Trust Checks

Expert Contribution

System Verified

Community Approved

DOT050V-010.0M Overview

Use the download button to access the DOT050V-010.0M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DOT05, or try a keyword search, such as TCVCXO
