DP83640TVVX/NOPB - Texas Instruments

Description: IEEE 1588 precision time protocol PHYTER™ Ethernet physical layer transceiver

Download DP83640TVVX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

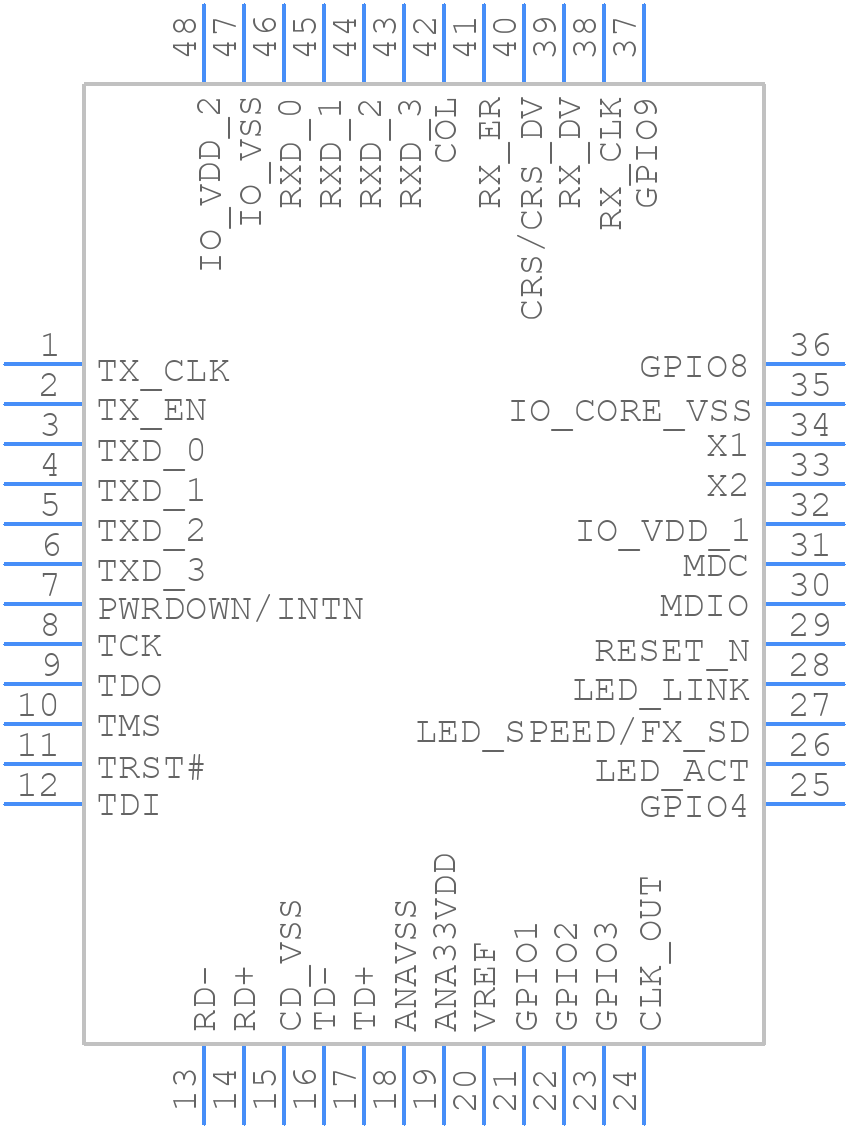

DP83640TVVX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83640TVVX/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48) _2021
click to zoom
3D Models
DP83640TVVX/NOPB - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48) _2021
click to zoom

DP83640TVVX/NOPB Details

  • Manufacturer Part Number:

    DP83640TVVX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83640TVVX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application note (SLVA466) for optimal performance.
  • The DP83640TVVX/NOPB can be configured using the TI's Phy Utility software, which provides a graphical user interface to configure and monitor the PHY. The software can be downloaded from the TI website.
  • The maximum cable length supported by the DP83640TVVX/NOPB is 100 meters, as per the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and cable quality.
  • TI provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, the Phy Utility software can be used to monitor and debug the PHY.
  • The DP83640TVVX/NOPB is a IEEE 802.3-compliant PHY, which means it is compatible with other IEEE 802.3-compliant PHY devices. However, compatibility with specific devices should be verified through testing and validation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83640TVVX/NOPB Overview

Use the download button to access the DP83640TVVX/NOPB schematic symbol, PCB footprint, and 3D model.
