DP83822HRHBT - Texas Instruments

Description: Robust, Low Power 10/100 Ethernet Physical Layer Transceiver Extended Temperature

Download DP83822HRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

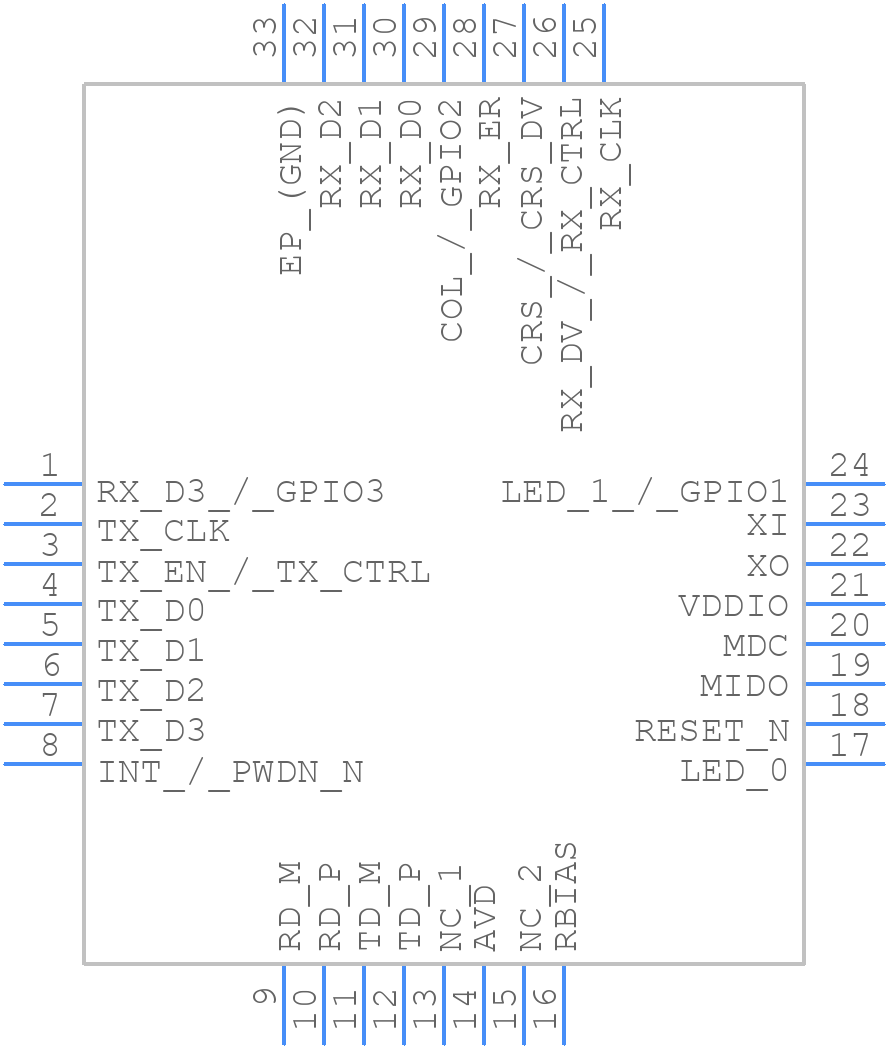

DP83822HRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83822HRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB-(S-PVQFN-N32)
click to zoom
3D Models
DP83822HRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB-(S-PVQFN-N32)
click to zoom

DP83822HRHBT Details

  • Manufacturer Part Number:

    DP83822HRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-07-13

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DP83822HRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83822HRHBT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83822HRHBT can be configured using the SPI or I2C interface. Texas Instruments provides a software development kit (SDK) and application notes that provide examples of how to configure the device for specific Ethernet applications.
  • The DP83822HRHBT has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, thermal vias, and thermal pads on the PCB.
  • Texas Instruments provides a troubleshooting guide in the DP83822HRHBT datasheet, which includes common issues and their solutions. Additionally, the device has built-in diagnostic features, such as loopback mode and signal quality indicator, that can be used to troubleshoot issues.
  • The DP83822HRHBT is designed to meet the electromagnetic compatibility (EMC) and electromagnetic interference (EMI) requirements of the IEEE 802.3 standard. To ensure compliance, it is recommended to follow the PCB layout guidelines and use shielding and filtering components as necessary.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83822HRHBT Overview

Use the download button to access the DP83822HRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces
