Texas Instruments provides a recommended PCB layout in the DP83826IRHBR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
The DP83826IRHBR can be configured using the SPI or I2C interface. Texas Instruments provides a software development kit (SDK) and application notes that provide examples of how to configure the device for specific network applications, such as Ethernet, IEEE 1588, and AVB.
The DP83826IRHBR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Texas Instruments recommends using a thermal via array or a thermal pad connected to a ground plane to dissipate heat. The device also has a thermal monitoring feature that can be used to monitor the device temperature.
Texas Instruments provides a troubleshooting guide in the DP83826IRHBR datasheet and application notes. The guide provides steps to troubleshoot common issues, such as link faults, packet loss, and PHY register access errors. Additionally, the device has built-in diagnostic features, such as loopback mode and signal quality indicator, that can be used to troubleshoot issues.
The DP83826IRHBR has multiple power management options, including Energy-Efficient Ethernet (EEE), Wake-on-LAN (WOL), and power-down mode. The device can also be configured to operate in a low-power mode, which reduces power consumption when the link is idle.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DP83826IRHBR Overview

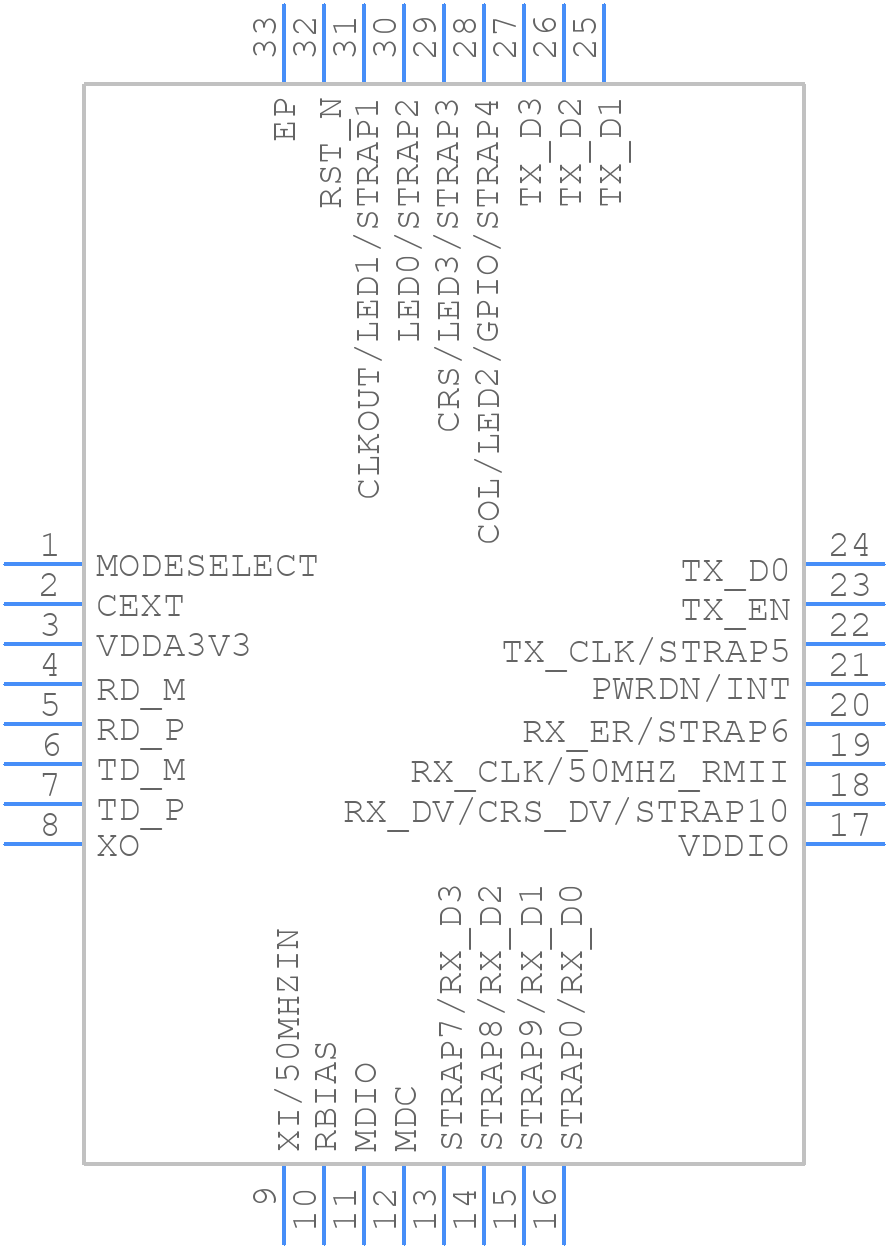

Use the download button to access the DP83826IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838,
or try a keyword search, such as Network Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
