DP83848CVV/NOPB - Texas Instruments

Description: Commercial temperature, 10/100-Mbps Ethernet PHY transceiver with SNI interface & JTAG suppor

Download DP83848CVV/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

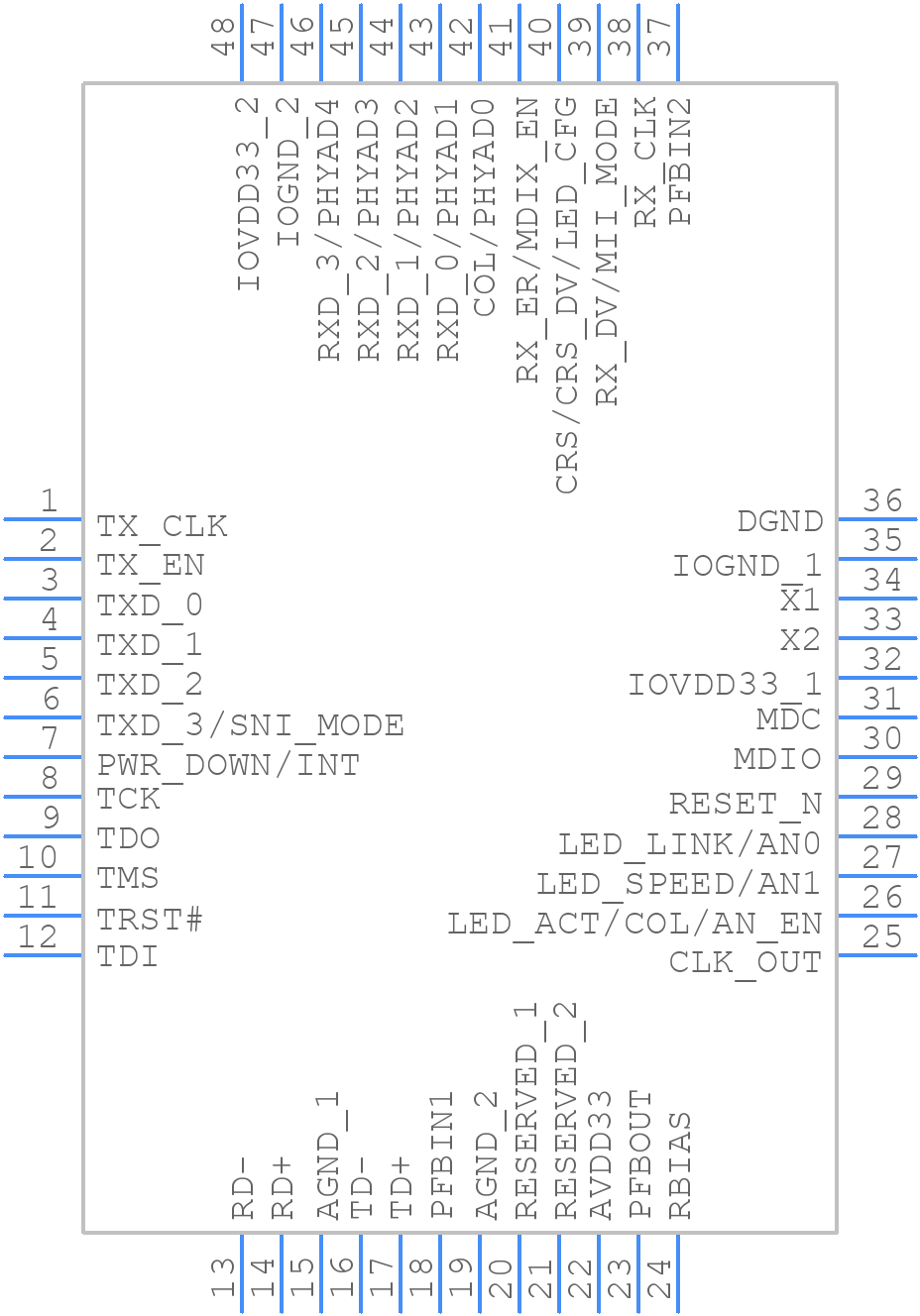

DP83848CVV/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83848CVV/NOPB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - DP83848CVV/NOPB
click to zoom
3D Models
DP83848CVV/NOPB - Texas Instruments - 3D model - Quad Flat Packages - DP83848CVV/NOPB
click to zoom

DP83848CVV/NOPB Details

  • Manufacturer Part Number:

    DP83848CVV/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Transceivers:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83848CVV/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'Ethernet PHY Layout Guidelines' application note (SLAA503) for optimal performance.
  • The DP83848CVV/NOPB can be configured for specific network speeds using the strap pins or through the SPI interface. Refer to the datasheet for specific configuration options and the 'DP83848CVV/NOPB Evaluation Module User's Guide' (SLAU445) for more information.
  • The power consumption of the DP83848CVV/NOPB varies depending on the operating mode and speed. Refer to the datasheet for specific power consumption values, and the 'DP83848CVV/NOPB Power Consumption' application note (SLAA504) for more information.
  • Texas Instruments provides a troubleshooting guide in the 'DP83848CVV/NOPB Troubleshooting Guide' (SLAU446) that covers common issues and solutions. Additionally, the 'DP83848CVV/NOPB Evaluation Module User's Guide' (SLAU445) provides guidance on using the evaluation module to debug issues.
  • The DP83848CVV/NOPB has a maximum junction temperature of 150°C. Ensure proper thermal design and heat dissipation to prevent overheating. Refer to the datasheet for thermal characteristics and the 'DP83848CVV/NOPB Thermal Design Considerations' application note (SLAA505) for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83848CVV/NOPB Overview

Use the download button to access the DP83848CVV/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces
